Test Your API Response MLE Key

Follow these steps to verify that your API response MLE key is working using the API Reference in the Developer Center. If you have not already created or submitted an API response MLE certificate, see Create or Submit an API Response MLE Key.
  1. Go to the API Reference in the
    Barclays
     Developer Center:
  2. Choose an API that supports MLE on the left navigation panel.

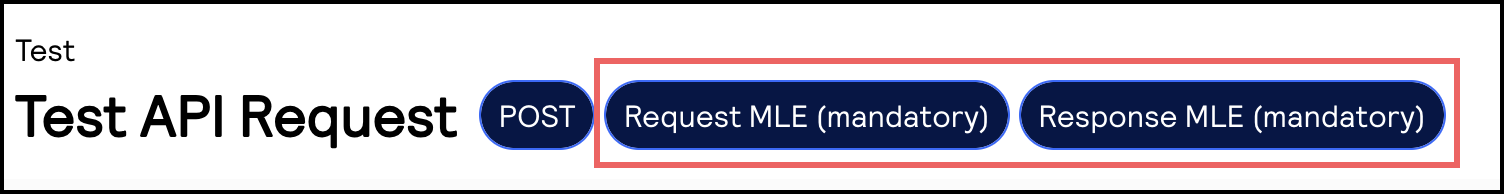

    MLE support is indicated by
    Request MLE
     and
    Response MLE
     at the top of the screen.

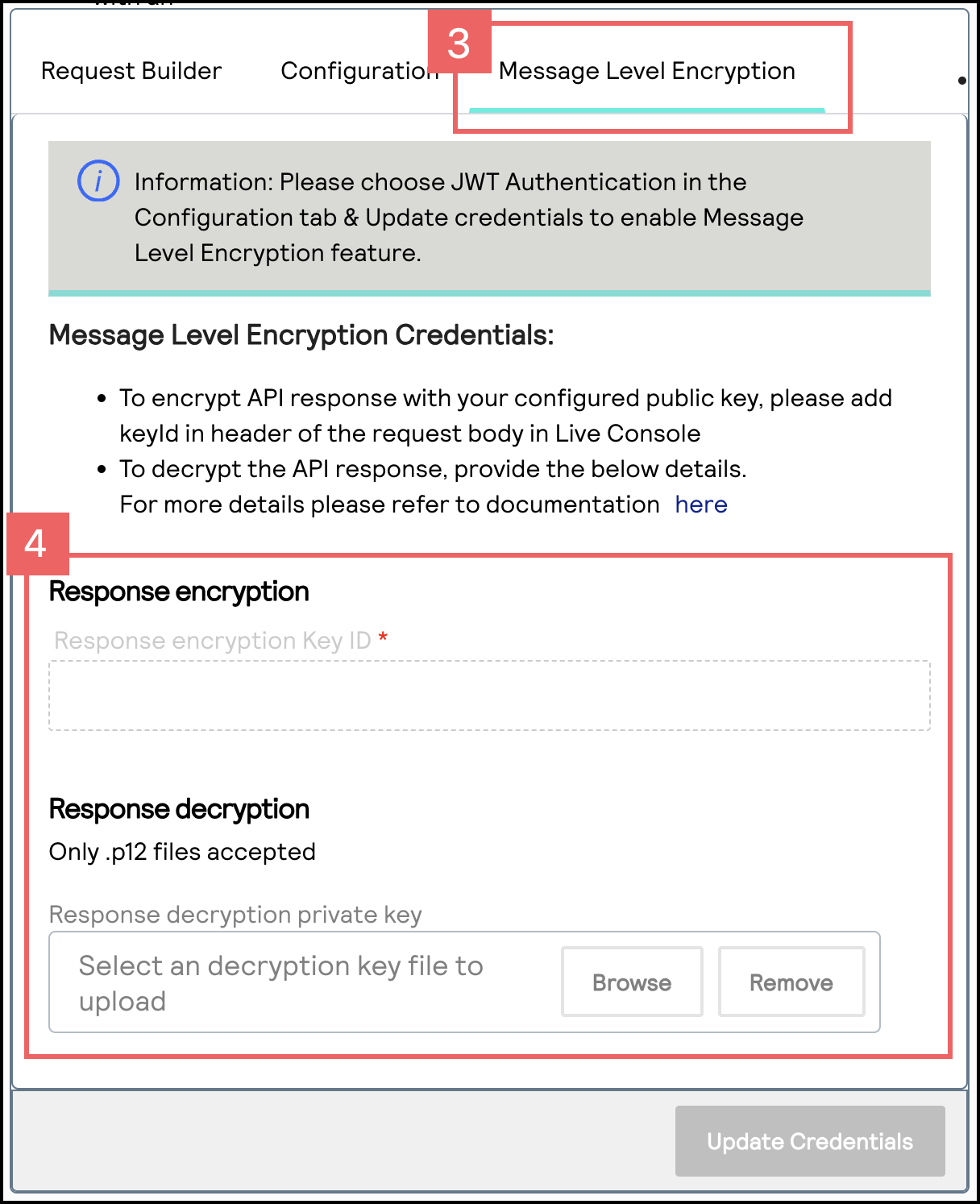

  3. Choose the
    MLE Configuration
     tab.
  4. Enter your API response MLE key credentials in the Message Level Encryption Credentials section:
    • Response encryption:
       Enter the key ID of your API response MLE key.
      This is the key ID that you saved in Step 10 in the Create or Submit an API Response MLE Key section in Enable Message-Level Encryption.
    • Response decryption:
       Click
      Browse
       to submit your own decryption private key from your local system. Only
      .p12
       files are supported.
  5. Click
    Update Credentials
    .

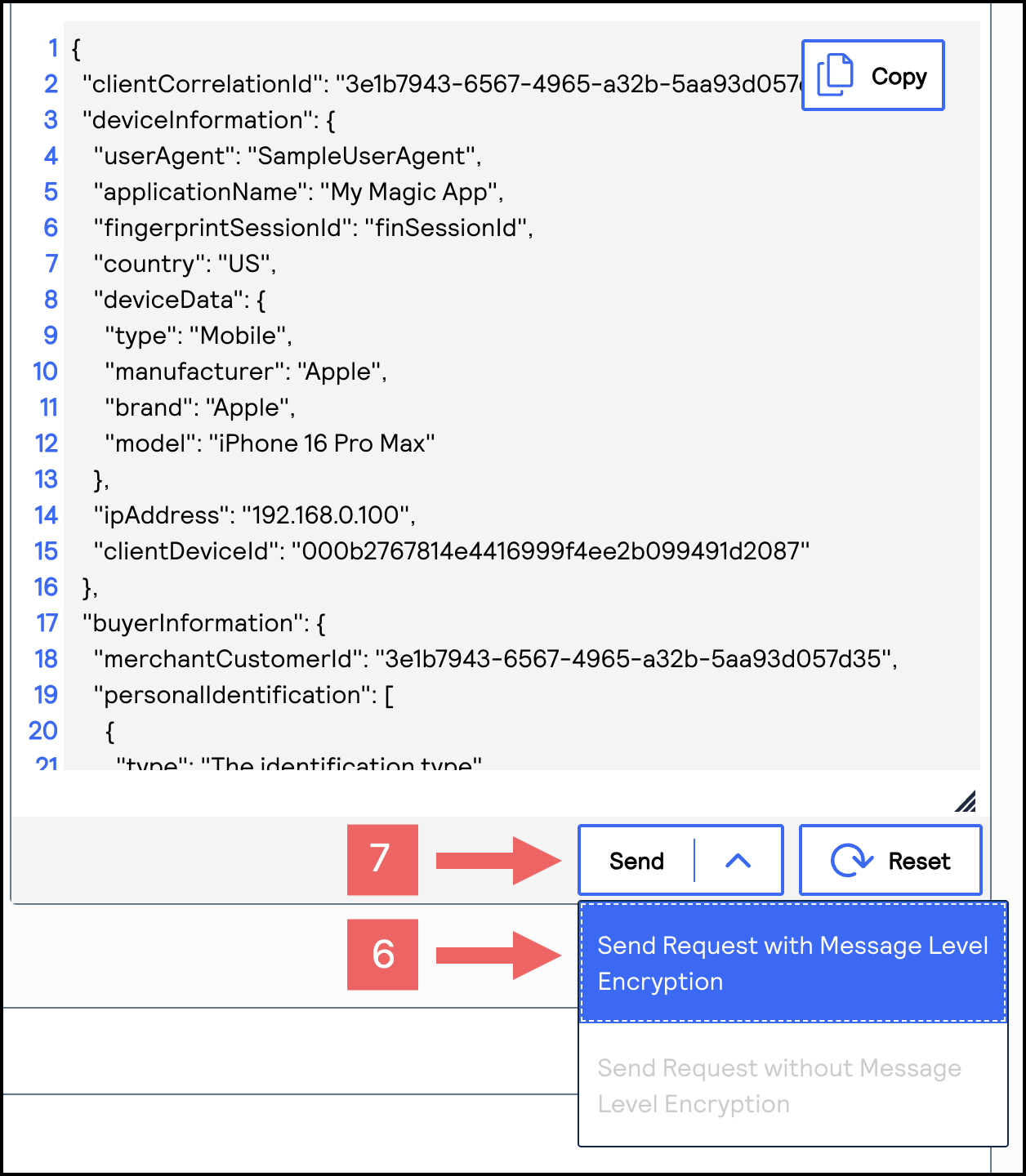

  6. Click the Send drop-down menu icon ( ) in the Request: Live Console section and choose
    Send Request with Message Level Encryption
    .
  7. Click
    Send
    .

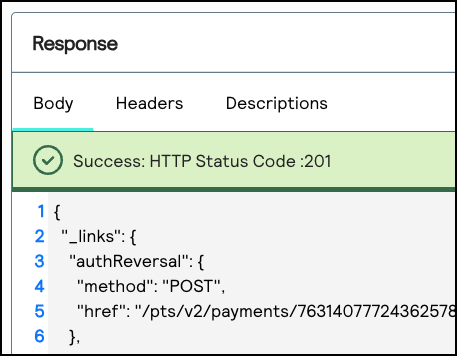

  8. If a
    Success: HTTP Status Code: 201
     message displays in the Response section, your API response key is properly configured.
